Machines for profile controls

Identification of burrs and jaggedness

Many of the models of visual inspection machines for profile controls in the VIM catalog are able to carry out checks on the profile of the piece, aimed at identifying external and internal burrs, jaggedness, lacks or extra shapes. The notch control and the burr control are also included in the profile controls.

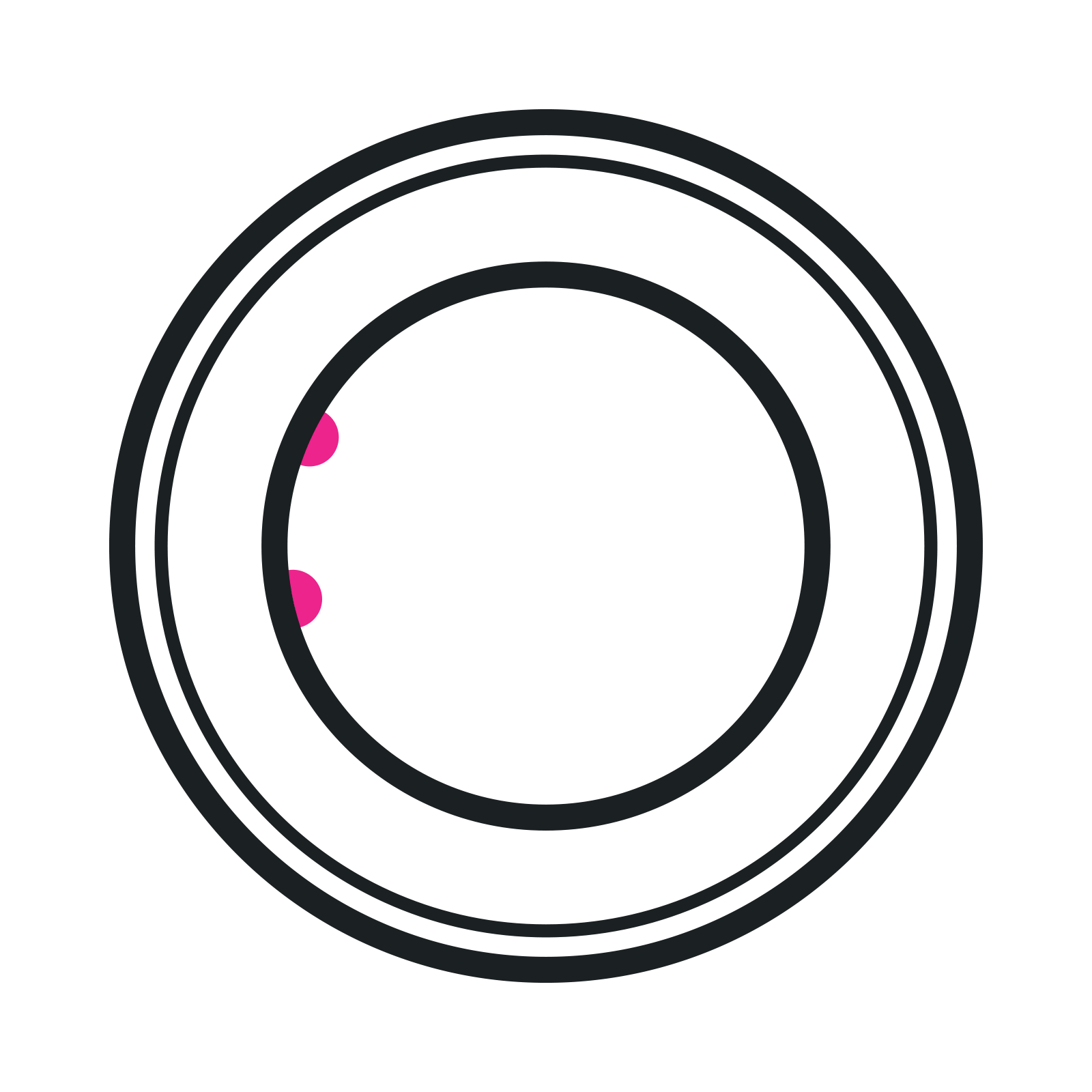

Internal burr detection on washer for faucets

Internal burr detection on washer for faucets

Burr detection on the outside edge in a frame for air conditioning

Burr detection on the outside edge in a frame for air conditioning

V.0Visual Inspection machine single-glass table for micro parts

Visual Inspection machine single-glass table for micro parts

Parts dimension

from 0,5 mm ID to 7 mm OD

Single-glass visual inspection machine, "transparent glass-optical-table". Automatic feeder with integrated vibrating cup.

V.2Visual inspection machine single-glass table for parts up to 60 mm OD

Visual inspection machine single-glass table for parts up to 60 mm OD

Parts dimension

from 5 mm ID to 60 mm OD

Single-glass visual inspection machine, "transparent glass-optical-table". Automatic feeder with 200 liters of autonomy.

V.3Visual inspection machine mono-table for parts up to 100 mm OD

Visual inspection machine mono-table for parts up to 100 mm OD

Parts dimension

from 5 mm ID to 100 mm OD

Double table visual inspection machine, "glass-optical-table". Automatic feeder with great autonomy (200 liters of capacity).
